Data Format

Data format feature requires the following namespace.

using unvell.ReoGrid.DataFormat;

To specify data format, use SetRangeDataFormat method of worksheet.

var sheet = reoGridControl.CurrentWorksheet;

sheet.SetRangeDataFormat(range, formatFlag, [Optional] object argument = null)

For example:

sheet.SetRangeDataFormat("A1:B2", CellDataFormatFlag.Number,
  new NumberDataFormatter.NumberFormatArgs()
  {
    // decimal digit places, e.g. 0.1234
    DecimalPlaces = 4,

    // negative number style, e.g. -123 -> (123)
    NegativeStyle = NumberDataFormatter.NumberNegativeStyle.RedBrackets,

    // use separator, e.g.123,456
    UseSeparator = true,
  });

Or use action. Operation done by using action can be undone by call Undo method or press Ctrl+Z:

reoGridControl.DoAction(new SetRangeDataFormatAction(range, formatFlag, [Optional] object dataFormatArgs = null));

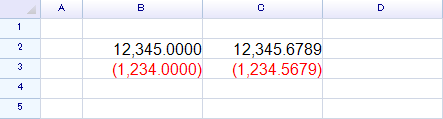

Test:

sheet["B2"] = 12345;
sheet["C2"] = 12345.67890;
sheet["B3"] = -1234;
sheet["C3"] = -1234.56789;

52 (2)

Available Data Format

TypeCellDataFormatFlagArgument
NumberCellDataFormatFlag.NumberNumberDataFormatter.NumberFormatArgs
DateTimeCellDataFormatFlag.DateTimeDateTimeDataFormatter.DateTimeFormatArgs
PercentCellDataFormatFlag.PercentPercentDataFormatter.PercentFormatArgs
CurrencyCellDataFormatFlag.CurrencyCurrencyDataFormatter.CurrencyFormatArgs
TextCellDataFormatFlag.TextNone
Custom ExtensionCellDataFormatFlag.CustomAny object

Number

Number format provides the generic number format with specifiable separator, number of digits for decimal place and negative number styles.

322

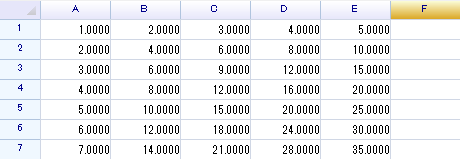

Example:

47 (1)

Code to set cell as number format:

sheet.SetRangeDataFormat("A1:E7", CellDataFormatFlag.Number,
  new NumberDataFormatter.NumberFormatArgs()
  {
    // decimal digit places 0.1234
    DecimalPlaces = 4,

    // use separator: 123,456
    UseSeparator = true,
  });

Negative number style

Negative number styles defined in enum NumberNegativeStyle.

ReoGrid provides the following styles to format a negative number.

Negative number styleExampleEnum Value
No style-123,456.789Minus
Red123,456.789Red
Red Minus-123,456.789Red |Minus
Bracketed(123,456.789)Brackets
Bracketed Red(123,456.789)Brackets |Red
Bracketed Red Minus(-123,456.789)Brackets |Red |Minus
Japanese Prefix▲ 123,456,789Prefix_Sankaku
Japanese Prefix (ReoGrid Pro)▲ 123,456,789Prefix_Sankaku |Red

Example:

323

var sheet = grid.CurrentWorksheet;

sheet.SetRangeDataFormat("B2", CellDataFormatFlag.Number,
  new NumberDataFormatter.NumberFormatArgs
  {
    DecimalPlaces = 3,
    NegativeStyle = NumberDataFormatter.NumberNegativeStyle.RedBrackets,
    UseSeparator = true,
  });

sheet["B2"] = -12345.67;

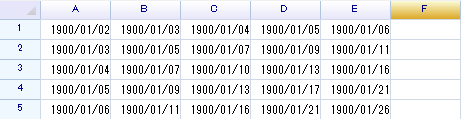

DateTime

48 (2)

sheet.SetRangeDataFormat(RangePosition.EntireRange, CellDataFormatFlag.DateTime,
  new DateTimeDataFormatter.DateTimeFormatArgs
  {
    // culture
    CultureName = "en-US",

    // pattern
    Format = "yyyy/MM/dd",
  });

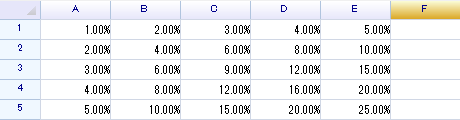

Percent

49 (2)

sheet.SetRangeDataFormat(RangePosition.EntireRange, CellDataFormatFlag.Percent,
  new NumberDataFormatter.NumberFormatArgs
  {
    // decimal digit places
    DecimalPlaces = 2,
  });

Currency

Currency format extended from number format, it is possible to specify the currency symbol before or after currency number. For example:

325

var sheet = grid.CurrentWorksheet;

// add test code here
sheet.SetRangeDataFormat("B2", CellDataFormatFlag.Currency,
  new CurrencyDataFormatter.CurrencyFormatArgs
  {
    CultureEnglishName = "en-US",
    DecimalPlaces = 2,
    UseSeparator = true,
    PrefixSymbol = "$"
  });

sheet["B2"] = 1234;

Put space before symbol and number

It is possible to put a space after dollar symbol, for example:

324

sheet.SetRangeDataFormat("B2", CellDataFormatFlag.Currency,
  new CurrencyDataFormatter.CurrencyFormatArgs
  {
    CultureEnglishName = "en-US",
    DecimalPlaces = 2,
    UseSeparator = true,
    PrefixSymbol = **"$ "**
  });

Example: Set postfix symbol

326

sheet.SetRangeDataFormat("B2", CellDataFormatFlag.Currency,
  new CurrencyDataFormatter.CurrencyFormatArgs
  {
    CultureEnglishName = "en-US",
    DecimalPlaces = 2,
    UseSeparator = true,
    PostfixSymbol = " USD"
  });

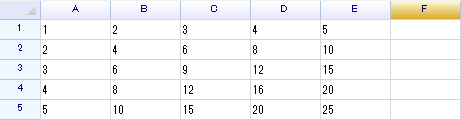

Text

Set data format as Text to prevent data format.

51 (2)

sheet.SetRangeDataFormat(RangePosition.EntireRange, CellDataFormatFlag.Text, null);

Custom cell data formatter

To add custom cell data formatter, see Custom Data Format.
