ColumnChart 以垂直柱形显示数据，适用于比较不同类别之间的值。
示例

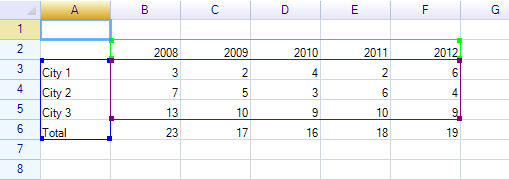

准备数据
var sheet = grid.CurrentWorksheet;
sheet["A2"] = new object[,] {
{ null, 2008, 2009, 2010, 2011, 2012 },
{ "City 1", 3, 2, 4, 2, 6 },
{ "City 2", 7, 5, 3, 6, 4 },
{ "City 3", 13, 10, 9, 10, 9 },
{ "Total", "=SUM(B3:B5)", "=SUM(C3:C5)", "=SUM(D3:D5)",
"=SUM(E3:E5)", "=SUM(F3:F5)" },
};定义范围
var dataRange = sheet.Ranges["B3:F5"];
var serialNamesRange = sheet.Ranges["A3:A5"];
var categoryNamesRange = sheet.Ranges["B2:F2"];
sheet.AddHighlightRange(serialNamesRange);
sheet.AddHighlightRange(categoryNamesRange);
sheet.AddHighlightRange(dataRange);

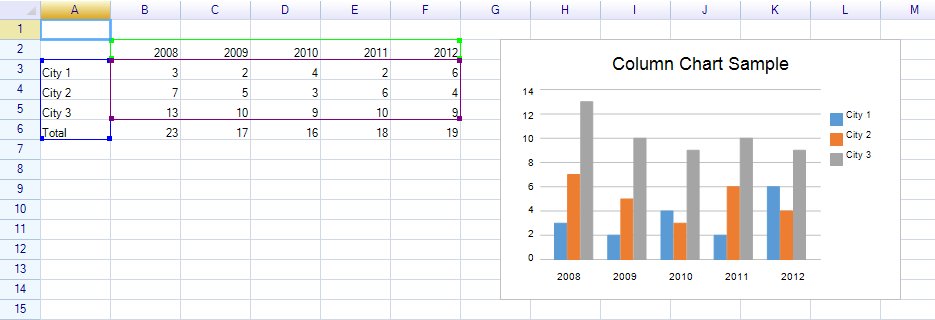

创建图表
var chart = new Chart.ColumnChart
{
Location = new Graphics.Point(220, 160),
Size = new Graphics.Size(400, 260),
Title = "Column Chart Sample",
DataSource = new WorksheetChartDataSource(sheet, serialNamesRange, dataRange)
{
CategoryNameRange = categoryNamesRange,
},
};
sheet.FloatingObjects.Add(chart);
自定义
坐标轴配置
// 显示垂直辅助线
chart.ShowVerticalGuideLines = true;
// 自定义坐标轴范围
chart.PrimaryAxisInfo.Minimum = 0;
chart.PrimaryAxisInfo.Maximum = 20;
chart.PrimaryAxisInfo.AutoMinimum = false;
chart.PrimaryAxisInfo.AutoMaximum = false;系列样式
// 更改柱形颜色
chart.DataSerialStyles[0].FillColor = Graphics.SolidColor.SteelBlue;
chart.DataSerialStyles[1].FillColor = Graphics.SolidColor.Coral;
chart.DataSerialStyles[2].FillColor = Graphics.SolidColor.MediumSeaGreen;图例
chart.ShowLegend = true; // 默认值
