Cells in ReoGrid can hold a cell body. A cell body is an interface that displays customized content in a cell and interacts with user input. A customized cell body class must inherit from CellBody or implement the ICellBody interface. For more about cell bodies, see Custom Cell.

The following built-in cell body types are available:

Class Name	Sample	Description
ButtonCell		General button.
CheckBoxCell		Check box that toggles the cell data between the .NET Boolean values true and false.
RadioButtonCell		Radio button that toggles the cell data between true and false; radio buttons in the same group toggle each other.
HyperlinkCell		Hyperlink that can navigate to a specified URL automatically.
DropDownListCell		Drop-down cell that provides a list of candidates and lets the user choose a single item as cell data.
ProgressCell		Progress cell that displays a progress bar in the cell based on the cell data (0–1).
NegativeProgressCell		Negative progress cell that can display positive and negative progress bars based on the cell data (0–1).
Image		Image cell that displays an image in the cell.
ImageButton		Image button that displays an image on a button in the cell.
DatePickerCell		Date picker cell that allows the user to choose a date from a drop-down calendar.
NumberInputCell		Numeric input cell with spin buttons to increment or decrement the value.
ComboListCell		Combo box style cell that combines a text input with a drop-down selection list.
ColumnDropdownListCell		Drop-down list cell that uses column data as the selection source.

To use built-in cell types, the following namespace is required:

using unvell.ReoGrid.CellTypes;

Button

The ButtonCell class represents a button control on a worksheet.

sheet[1,2] = new ButtonCell("Hello");

The cell body always uses the cell’s data as its label, so the following code also works:

sheet[1,2] = new ButtonCell();
sheet[1,2] = "Hello";

Button Click Event

The Click event is raised when the user clicks the button.

var button = new ButtonCell("Hello");
button.Click += (s, e) => MessageBox.Show("Button clicked");

Perform Click

It is possible to use the PerformClick method to simulate a click event. For example:

button.PerformClick();

Change Button Text Color

By changing the cell style, it is possible to change the color of the button label. For example, the following code changes the button label to blue:

var cell = sheet.Cells["C3"];
cell.Style.TextColor = Color.Blue;

var button = new ButtonCell("Hello");
cell.Body = button;

Hyperlink

A hyperlink uses the cell’s data as its navigation URL.

sheet[1,2] = new HyperlinkCell("http://www.google.com");

// or

sheet[1,2] = new HyperlinkCell();
sheet[1,2] = "http://www.google.com";

Automatic Navigation

The second argument autoNavigate of the constructor specifies whether to navigate to the specified URL when the user clicks the hyperlink. For example:

sheet[1,2] = new HyperlinkCell("http://www.google.com/", true);

Hyperlink Click Event

The Click event is raised when the user clicks the hyperlink.

Before this event is raised, the URL may be navigated to first if the autoNavigate argument is true. To prevent this, set autoNavigate to false.

var link = new HyperlinkCell("http://myurl.com", false);
link.Click += (s, e) => { doMyEventHandler(); };

Perform Click

It is possible to use the PerformClick method to simulate a click event. For example:

link.PerformClick();

Check Box

The CheckBoxCell class represents a check box on a worksheet, but it does not provide a label to be displayed on the worksheet. It is usually necessary to place a label before or after the check box cell, as shown in the following image:

var checkboxCell = new CheckBoxCell();

// add check box and a text label
sheet["C1"] = new object[] { checkboxCell, "Auto destroy after 5 minutes." };

Get and Set Check Status

Set the cell’s data directly using a boolean value to check or uncheck the check box, or use the IsChecked property to get the check status.

// check
sheet[1, 2] = true;

// uncheck
sheet[1, 2] = false;

// get check status from worksheet
bool isChecked = (sheet["C1"] as bool?) ?? false;

// get or set check status from check box
bool isChecked = checkboxCell.IsChecked;

Click and CheckChanged events

The Click event is raised when the user clicks the check box. The Click event does not fire when the user presses the Space key inside the cell.

checkboxCell.Click += (s, e) => { doEventHandler(); };

The CheckChanged event is raised when the user changes the check box status by mouse or keyboard.

checkboxCell.CheckChanged += (s, e) => { doEventHandler(); };

CellDataChanged event

Since the check box cell updates the cell’s data as a boolean value, the CellDataChanged event is also raised when the check box status changes.

sheet.CellDataChanged += (s, e) =>
{
  if (e.Cell.Position == new CellPosition("C1"))
  {
    MessageBox.Show("Check box status changed: " + e.Cell.Data);
  }
};

Custom Drawing for Check Box

To customize the appearance of the check box cell instead of using the built-in style, override the OnContentPaint method. The following code draws the check box using checked and unchecked images:

class MyCheckBox : CheckBoxCell {
  Image checkedImage, uncheckedImage;

  public MyCheckBox() {
    checkedImage = Image.FromFile(@"...");
    uncheckedImage = Image.FromFile(@"...");
  }

  protected override void OnContentPaint(CellDrawingContext dc) {
    if (this.IsChecked) {
      dc.Graphics.DrawImage(checkedImage, this.ContentBounds);
    } else {
      dc.Graphics.DrawImage(uncheckedImage, this.ContentBounds);
    }
  }
}

Radio

The RadioButtonCell class represents a radio button on a worksheet. It inherits from CheckBoxCell, so the usage of the radio button cell is almost the same as the check box.

To add a radio button, use the following code:

var radio = new RadioButtonCell();
sheet["C3"] = radio;

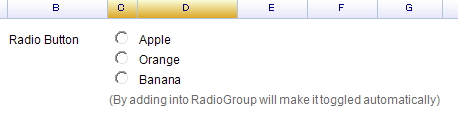

Radio Group

RadioButtonCell instances added to a RadioButtonGroup or assigned a RadioGroup property will automatically toggle each other within the same group.

var radioGroup = new RadioButtonGroup();
sheet[10, 2] = new object[,] {
  {new RadioButtonCell() { RadioGroup = radioGroup }, "Apple"},
  {new RadioButtonCell() { RadioGroup = radioGroup }, "Orange"},
  {new RadioButtonCell() { RadioGroup = radioGroup }, "Banana"}
};

Click and CheckChanged events

To handle the Click event:

radio.Click += (s, e) => doEventHandler();

To handle the CheckChanged event for all radio buttons in a group:

radioGroup.RadioButtons.ForEach(rb => rb.CheckChanged += (s, e) =>
  ShowText(sheet, "Radio button selected: " + sheet[rb.Cell.Row, rb.Cell.Column + 1]));

CellDataChanged event

Since the radio button cell updates the cell’s data as a boolean value, the CellDataChanged event is also raised when the radio button status changes. See the Check Box Cell section above for sample code.

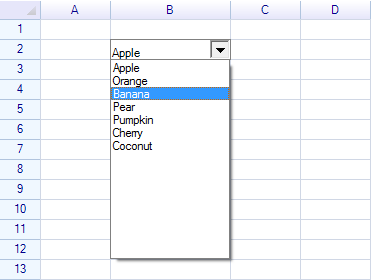

Drop-down List

The drop-down list cell is represented by the DropdownListCell class.

Code to add a drop-down list cell to a worksheet:

var dropdown = new DropdownListCell(
  "Apple", "Orange", "Banana", "Pear",
  "Pumpkin", "Cherry", "Coconut"
);
sheet["B2"] = dropdown;

Drop-down list cell events

The SelectedItemChanged event of the drop-down list cell is used to get the selected item from the drop-down panel.

dropdown.SelectedItemChanged += (s, e) => { ... };

Like the check box cell, the drop-down list cell also updates the cell data; it is also possible to get the selected item by handling the CellDataChanged event:

sheet.CellDataChanged += (s, e) => { ... };

Learn more details about Drop-down list cell.

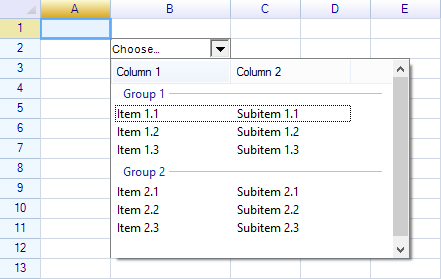

Custom Drop-down

The drop-down cell can be customized; it is possible to place any Windows Forms-compatible control inside the drop-down panel.

See how to create a custom drop-down cell.

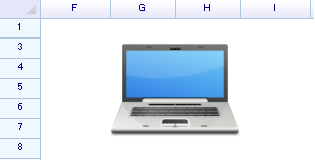

Code to add an image cell:

var image = Image.FromFile("...");
sheet[2, 6] = new ImageCell(image);

View Mode of Image Cell

ImageCell has a property named ViewMode that controls how the image is displayed inside the cell:

// create ImageCell by specifying the view mode
var imgCell = new ImageCell(img, ImageCellViewMode.Zoom);
sheet["F6"] = imgCell;

// or change the property directly
imgCell.ViewMode = ImageCellViewMode.Clip;

Alignments

The horizontal and vertical alignment styles of a cell can be used to control where the image is displayed:

var cell = sheet.Cells["F6"];
cell.Style.HAlign = ReoGridHorAlign.Center;
cell.Style.VAlign = ReoGridVerAlign.Middle;

Image Button Cell

Code to create an image button at cell C3:

sheet["C3"] = new ImageButtonCell(Image.FromFile(@"C:\\PathToFile\\Save-32.png"));

Result:

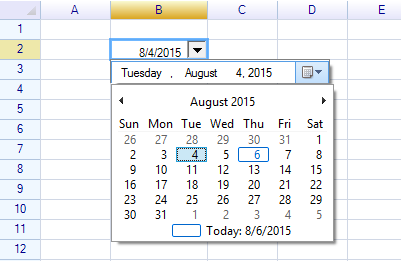

Date Picker

A built-in Date Picker Cell.

To create a custom date picker cell using the free edition of ReoGrid, see how to create a date picker cell.

Adjusting size for cell body

The size of a cell body is determined by its parent cell along with a padding style value. It is also possible to make a cell larger by merging multiple cells.

Windows Forms and WPF editions

ReoGrid supports a subset of cell types in the WPF edition, as shown below:

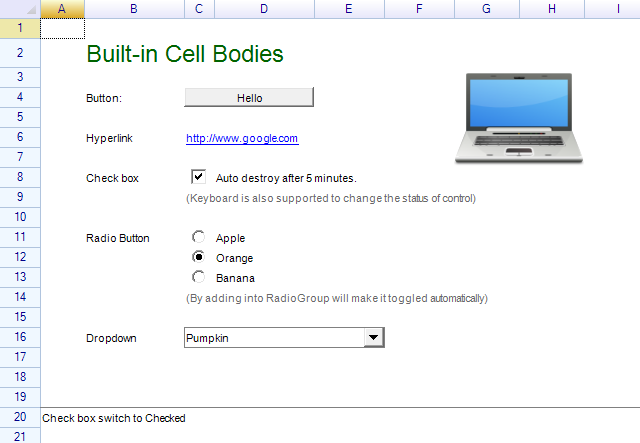

Learn more from the Demo project

Examples of built-in cell types are included in the Demo project.

Windows Forms edition

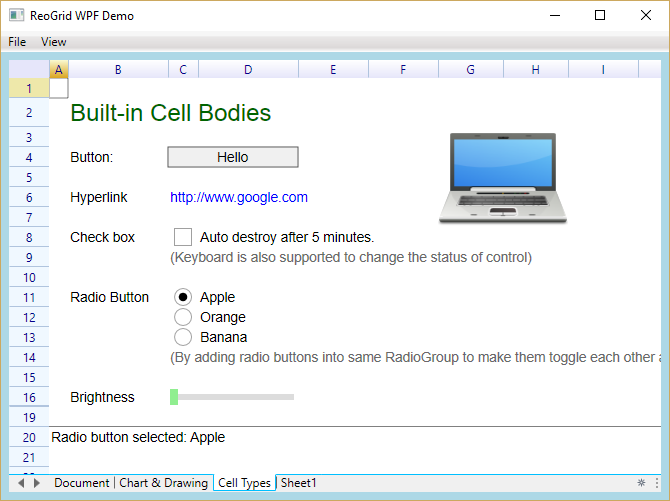

WPF edition
