Cell text rotation — ReoGrid Docs

Set the RotateAngle property of the style object to rotate text inside a cell. For example:

var cell = sheet.Cells["A1"];
cell.Data = "Hello World";
cell.Style.RotateAngle = 90;

345

Example: Rotate -90°

The rotation angle range is from -90° to 90°. 353

Multi-line text rotation

To display multi-line text, set the TextWrap property of the style object to WordBreak.

var cell = sheet.Cells["A1"];
cell.Data = ".NET Spreadsheet\\nComponent";
cell.Style.TextWrap = TextWrapMode.WordBreak;
cell.Style.RotateAngle = -45;

354

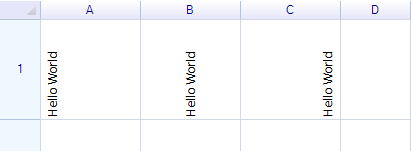

Rotated text alignment

Horizontal and vertical alignment also apply to rotated text. For example, it is possible to position rotated text at the left, center, or right.

cell = sheet.Cells["A1"];
cell.Data = "Hello World";
cell.Style.HAlign = ReoGridHorAlign.Left;
cell.Style.RotateAngle = 90;

cell = sheet.Cells["B1"];
cell.Data = "Hello World";
cell.Style.HAlign = ReoGridHorAlign.Center;
cell.Style.RotateAngle = 90;

cell = sheet.Cells["C1"];
cell.Data = "Hello World";
cell.Style.HAlign = ReoGridHorAlign.Right;
cell.Style.RotateAngle = 90;

355

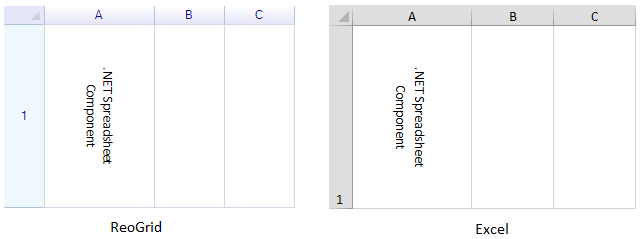

Excel import/export support

Text rotation settings are saved to and loaded from Excel files automatically. 356
